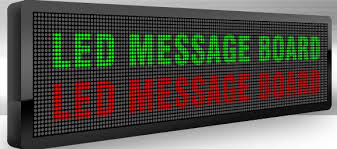

On-board Display Boards (LED)

A bus may have up to four display boards mounted inside to display the upcoming Bus Stop & other relevant information. These LED Displays are located at:

• Front Display Board
• Rear Display Board
• Side Display Board and
• Internal Display Board

The display board displays messages in various modes including fixed, scroll and alternate mode. They receive display messages and commands from the Controller unit through RS485 serial port windows based software package as per A15052. The controller sends the message to be displayed to the respective display board along with the suitable command for displaying the message. The Display Board keeps on displaying the given messages as per the defined display format and pattern.

Size	1800 mm. wide and 200 mm. high
Pitch	H 13.4 x V 14.1 mm
Colour	Amber, Diffused types, Viewing Angle 1200 H/880 V
Visibility	50 meters in all weather
Brightness	Programmable (50 steps)
Language	English and Regional Indian language
Display	Fixed, Several & Alternate Mode

Size	900 mm. wide and 200 mm. high
Pitch	H 13.4 x V 14.1 mm
Colour	Amber
Visibility	15 meters
Brightness	Programmable (50 Steps)
Language	English and Regional Indian language

Size	800 mm. wide and 100 mm. high
Colour	Amber
Visibility	15 meters
Brightness	Programmable (50 Steps)
Language	English and Regional Indian language
No. of Route / Stop	150 routes / 50 stops in Each Route

Besides the LED display, we can also provide LCD Display panel for advertising on-board. It features:

• Jazzy passenger friendly kiosk with touch screen facility
• Smart card based ticket issuing
• Ticket printing
• On demand schedule display for passenger
• Secure data communication with central server over GPRS and WI-FI
• Designated nearby places on map view
• Advertisement display for additional revenue generation
• Manual ticket issuing on bus stop to reduce on-board conductor load
• Enables conductor less bus trips
